Melco manufactures replacement parts to fit both Barton positive and adjustable chokes.

MELCO offers the 2" replacement choke parts in both 1" and 3/4" series.

MELCO also manufactures replacement parts of Cameron adjustable and Unibolt chokes.

B-90P2" x 3M Positive Choke B-15P2" x 5M Positive Choke B-90A2" x 3M Adjustable Choke B-90P 2" x 5M Adjustable Choke

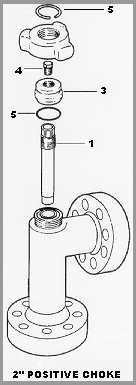

B-90P 2" x 3M POSITIVE CHOKE
ITME	PART NO.	DESCRIPTION
1	1023-40	Seat
2	1023-228	O'Ring
3	1023-83	Tapped Blanking Plug
4	1023-82	Plug
5	1023-81	Retainer Ring
B-15 2" x 5M POSITIVE CHOKE
1	1023-40	Seat
2	1023-228	O'Ring
3	1023-83	Tapped Blanking Plug
4	1023-82	Plug
5	1023-81	Retainer Ring

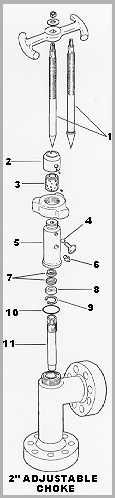

B-90A 2" x 3M ADJUSTABLE CHOKE
ITME	DESCRIPTION	3/4" ORIFICE	1" ORIFICE
1	Stem	1023-04	1023-54
2	Indicator Cover	1023-07	1023-07
3	Indicator	1023-05	1023-55
4	5/16" Teflon Ball	1023-10	1023-10
5	Bonnet	1023-11	1023-11
6	Grease Fitting	1023-19	1023-19
7	U Cup Seals(2)	1023-12	1023-12
8	Retainer Ring	1023-15	1023-15
9	Snap Ring	450-959	450-959
10	O'Ring	1023-228	1023-228
11	Seat	1023-40	1023-41
B-15A 2" x 5M ADJUSTABLE CHOKE
1	Stem	1023-04	1023-54
2	Indicator Cover	1023-07	1023-07
3	Indicator	1023-05	1023-55
4	5/26" Teflon Ball	1023-10	1023-10
5	Bonnet	1023-11	1023-11
6	Grease Fitting	1023-19	1023-19
7	U Cup Seals(2)	1023-12	1023-12
8	Retainer Ring	1023-15	1023-15
9	Snap Ring	450-959	450-959
10	O'Ring	1023-228	1023-228
11	Seat	1023-40	1023-41

CAMERON, BARTON, OCT, and UNIBOLT are registered trademarks.

---

---

---

For Additional Information Contact:
Melco Blowout Preventer Specialties
4001 West County Road
Odessa, TX 79764
432/362-0491
Fax 432/367-7921



2003 © COPYRIGHT-MELCO BOP, INC.-ALL RIGHTS RESERVED
