K-10 & K-20 Pulsation Dampner

K-10 & K-20 PULSATION DAMPNER REPLACEMENT PARTS

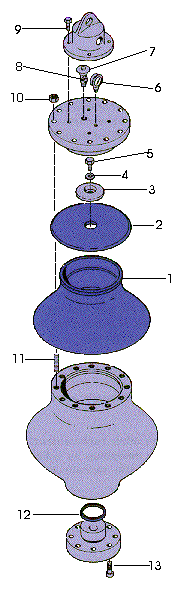

K-10 Pulsation Dampner

Item Part 1500psi 3000psi 5000psi

1 Diaphragm 41586 41586 41586

2 Stabilizer ****** 45808 45808

3 Stabilizer Plate ****** 37017 37017

4 Lock Washer ****** 36985 36985

5 Screw ****** 45559 45559

6 Gauge 38937 38937 38937

7 Valve 33844 33844 33844

8 Valve Cap 33845 33845 33845

9 Screw 41594 41594 41594

10 Hex Nut 46937 39958 35508

11 Stud Bolt 41588 41593 36270

12 Bottom
Plate
Gasket ****** 38101 38101

13 Cap Screw ****** 33843 38583

14 Charging
Hose
Assembly 38010 38010 38010

K-20 Pulsation Dampner
Item	Part	1500psi	3000psi	5000psi
1	Diaphragm	35504	35504	35504
2	Stabilizer	******	37016	37016
3	Stabilizer Plate	******	37017	37017
4	Lock Washer	******	36985	36985
5	Screw	******	37018	37018
6	Gauge	38937	38937	38937
7	Valve	33844	33844	33844
8	Valve Cap	33845	33845	33845
9	Screw	4092	4092	4092
10	Hex Nut	37825	35508	38585
11	Stud Bolt	37824	35507	38584
12	Bottom Plate Gasket	******	35616	35616
13	Cap Screw	******	33843	38583
14	Charging Hose Assembly	38010	38010	38010
