TYPE F HYDRAULIC VALVE PARTS
FOR CAMERON TYPE F/FC HYDRAULIC VALVES

USA-BOPS provides replacement parts to fit Cameron Type F hydraulic gate valves. USA-BOPS offers these valve parts in both standard trim and H2S trim.

USA-BOPS also offers replacement valve parts for Cameron Type F and FC manual valves.

Contact us for a complete parts breakdown of different trims available.

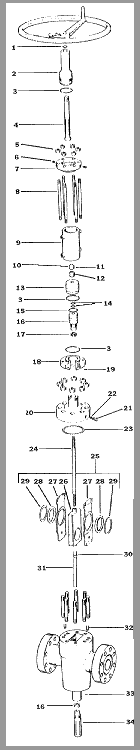

ITEM QTY. REQ'D DESCRIPTION
1
1
 O'Ring
2
1
 Adjusting Nut
3
3
 O'Ring
4
1
 Locking Screw
5
6
 Cyl. Head Nut
6
2
 Set Screw
7
1
 Blind Cyl. Head
8
6
 Cyl. Head Stud
9
1
 Cylinder
10
1
 Centering Pin
11
1
 Set Screw
12
1
 Piston Lock Nut
13
1
 Piston
14
2
 O'Ring
15
1
 O'Ring
16
1
 Gland
17
2
 Stem Packing
18
1
 Lower Cyl. Head
19
1
 Relief Valve
20
1
 Bonnet
21
1
 Grease Fitting
22
----
 Check Valve
23
1
 Bonnet Gasket
24
1
 Stem
25
1
 Gate & Seat
Assembly
26
1
 Gate
27
2
 Retainer Plate
28
2
 Seat Ring
29
2
 Seal Ring
30
1
 Pin
31
1
 Lower Stem
32
2
 Bonnet
Locating Pin
33
1
 Pipe Plug
34
1
 Stem Protector


TYPE F and FC MANUAL VALVE PARTS
ITEM DESCRIPTION QTY. REQ'D 2-1/16 x 5M
H2S Trim		 2-1/16 x 10M
H2S Trim		 3-1/16 x 5M
H2S Trim		 3-1/16 x 10M
H2S Trim		 4-1/16 x 5M
H2S Trim		 4-1/16 x 10M
H2S Trim
1 O'Ring
1
6227-27-1-70
6227-27-1-70
6227-27-1-70
6227-27-1-70
6227-27-1-70
6227-27-1-70
2 Adjusting Nut
1
22936-1
22936-1
22948-01
22948-01
22938-1
22850-01
3 O'Ring
3
6227-48-1-70
6227-48-1-70
6227-51-13-90
6227-51-13-90
6227-48-1-70
6227-61-01-70
4 Locking Screw
1
18597-1
18597-1
18597-3
18597-3
18597-4
18597-4
5 Cyl. Head Nut
6
5926-8
5926-8
5926-8
5926-8
5926-8
5926-10
6 Set Screw
2
5940-6
5940-6
5940-6
5940-6
5940-2
5940-6
7 Blind Cyl. Head
1
22939-1
22939-1
22945-1
22945-1
22939-1
22410-1
8 Cyl. Head Stud
6
5911-48
5911-48
5911-49
5911--49
5911-47
5913-30
9 Cylinder
1
20459-4
20459-4
20459-8
20459-8
20459-3
20459-7
10 Centering Pin
1
18596-1
18596-1
18596-1
18596-1
18596-1
18598-1
11 Set Screw
1
5940-1-4
5940-1-4
5940-1-4
5940-1-4
5940-1-4
5940-1-4
12 Piston Lock Nut
1
5953-5
5953-5
5953-5
5953-5
5953-5
5953-6
13 Piston
1
20582-1
20582-1
20946-1
20946-1
20582-1
2028-01
14 O'Ring
2
6227-19-1-70
6227-19-1-70
6227-19-1-70
6227-19-1-70
6227-19-1-70
6227-23-1-70
15 O'Ring
1
6227-36-13-85
6227-36-13-85
6227-36-13-90
6227-36-13-90
6227-36-13-85
6227-40-01-80
16 Gland
1
20454-2
20454-2
20943-2
20943-2
20454-2
20827-2
17 Stem Packing
2
686598-1
686598-1
686598-1
686598-1
686598-1
686598-2
18 Lower Cyl. Head
1
20583-1
20583-1
20938-1
20938-1
20583-1
20553-1
19 Relief Valve
1
5929-10
5929-10
5929-10
5929-10
5929-10
5929-10
20 Bonnet
1
33297-01-1
33297-04-1
33297-09-1
33297-10-1
33297-14-1
33297-02-1
21 Grease Fitting
1
5929-55
5929-55
5929-55
5929-55
5929-55
5929-55
22 Check Valve
---
---
678627-1
---
678627-1
---
678627-1
23 Bonnet Gasket
1
21793-11
19141-7
21793-8
19141-10
21794-3
19141-11
24 Stem
1
34272-1
34272-1
34272-4
34272-4
34272-3
38638-1
25 Gate & Seat Assembly
1
21436-2-4
21436-2-4
21436-3-4
21436-3-4
21436-4-7
21436-4-5
26 Gate
1
38696-1
29786-1
29399-1
29399-1
679632-1
34273-1
27 Retainer Plate
2
21356-1
21356-1
21358-1
21358-1
21020-1
21020-1
28 Seat Ring
2
18593-2
18593-2
22254-2
22254-2
22126-2
22251-2
29 Seal Ring
2
610500-23
610500-23
610500-71
610500-71
610500-47
610500-47
30 Pin
1
21812-52
21812-52
21812-52
21812-52
21812-52
21810-80
31 Lower Stem
1
34271-2
34271-2
34271-3
34271-3
34271-3
28360-3
32 Bonnet Locating Pin
2
21813-6
---
21814-5
---
21814-5
---
33 Pipe Plug
1
5930-1
5930-1
5930-1
5930-1
5930-1
5930-1
34 Stem Protector
1
20460-2
20460-2
20953-1
20953-1
20461-1
20849-2
