USA-BOPS provides replacement parts to fit Cameron Type F and FC manual valves. USA-BOPS offers these valve parts in both standard trim and H2S trim.

Contact us for a complete parts breakdown of different trims available.

USA-BOPS also offers replacement valve parts for Cameron Type F/FC hydralulic valves.

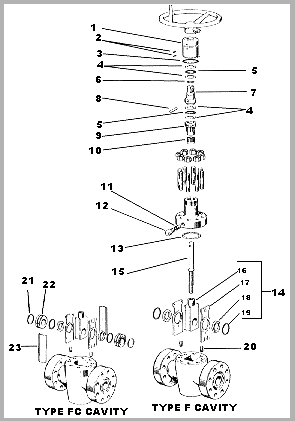

ITEM	QTY. REQ'D	DESCRIPTION
1	1	Bearing Cap
2	2	Grease Fitting
3	1	O'Ring
4	4	Bearing Race
5	2	Thrust Bearing
6	1	O'Ring
7	1	Stem Adapter
8	1	Stem Pin
9	1	Packing Gland
10	1	Stem Packing
11	1	Check Valve
12	1	Grease Fitting
13	1	Bonnet Gasket
14	1	Gate and Seat Assembly
15	1	Stem
16	1	Gate
17	2	Retainer Plate
18	2	Seat Ring
19	2	Seal Ring
20	2	Pin
21	2	Seal Ring
22	2	Body Bushing
23	2	Guide

TYPE F and FC MANUAL VALVE PARTS
ITEM	DESCRIPTION	QTY. REQ'D	2-1/16 x 5M Std. Trim	2-1/16 x 5M Super Trim	2-1/16 x 10M Stainless Steel	2-1/16 x 10M Super Trim	3-1/8 x 5M Std. Trim	3-1/8 x 5M Super Trim
1	Bearing Cap	1	19106-01	19106-01	19106-01	19106-01	19106-01	19106-01
2	Grease Fitting	2	5929-05	5929-05	5929-05	5929-05	5929-05	5929-05
3	O'Ring	1	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50
4	Bearing Race	4	19108-01	19108-01	19108-01	19108-01	19108-01	19108-01
5	Thrust Bearing	2	5931-09	5931-09	5931-09	5931-09	5931-09	5931-09
6	O'Ring	1	6227-27-01-70	6227-27-01-70	6227-27-01-70	6227-27-01-70	6227-27-01-70	6227-27-01-70
7	Stem Adapter	1	20871-01	20871-01	20871-01	20871-01	20871-01	20871-01
8	Stem Pin	1	21812-14	21812-14	21812-14	21812-14	21812-14	21812-14
9	Packing Gland	1	20874-01	20874-01	20874-01	20874-01	20874-01	20874-01
10	Stem Packing	1	23678-01	23678-01	23678-01	23678-01	23678-01	23678-01
11	Check Valve	1	---	---	19776-01	678627-01-99	---	---
12	Grease Fitting	1	5929-25	5929-55	5929-25	5929-55	5929-25	5929-55
13	Bonnet Gasket	1	21793-11	21793-11	19141-07	19141-07	21793-08	21793-27
14	Gate and Seat Assembly	1	21353-02-01	21353-02-12	21353-02-13	21353-02-13	21353-03-01	21353-03-16
15	Stem	1	19778-01	29381-01-99	29381-01-99	29381-01-99	19778-03	29381-03
16	Gate	1	19798-04	694493-01	19798-03	23043-02	19800-03	23791-01
17	Retainer Plate	2	611404-01	611404-01	611404-01	611404-01	611404-03	611404-03
18	Seat Ring	2	44844-06	44844-06	44844-06	44844-06	44783--06	44783-06
19	Seal Ring	2	14719-23	14719-23	14179-23	14719-23	610500-50	610500-50
20	Pin	2	21813-06	21813-06	---	---	21813-06	21813-06
21	Seal Ring	2	14719-69	14719-69	14719-69	14719-69	610500-71	610500-71
22	Body Bushing	2	694810-01	694810-01	694810-01	694810-01	694813-01	694813-01
23	Guide	2	694811-01	694811-01	694811-01	694811-01	694482-01	694482-01

TYPE F and FC MANUAL VALVE PARTS
ITEM	DESCRIPTION	QTY. REQ'D	3-1/16 x 10M Stainless Steel	3-1/16 x 10M Super Trim	4-1/16 x 5M Std. Trim	4-1/16 x 5M Super Trim	4-1/16 x 10M Stainless Steel	4-1/16 x 10M Super Trim
1	Bearing Cap	1	19106-01	19106-01	19106-01	19106-01	19312-01	19312-01
2	Grease Fitting	2	5929-05	5929-05	5929-05	5929-05	5929-05	5929-05
3	O'Ring	1	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-43-38-50	6227-46-38-50	6227-46-38-50
4	Bearing Race	4	19108-01	19108-01	19108-01	19108-01	19310-01	19310-01
5	Thrust Bearing	2	5931-09	5931-09	5931-09	5931-09	5931-10	5931-10
6	O'Ring	1	6227-27-01-70	6227-27-01-70	6227-27-01-70	6227-27-01-70	6227-27-01-70	6227-27-01-70
7	Stem Adapter	1	20871-01	20871-01	20871-01	20871-01	20873-01	20873-01
8	Stem Pin	1	21812-14	21812-14	21812-14	21812-14	21812-15	21812-15
9	Packing Gland	1	20874-01	20874-01	20874-01	20874-01	20890-01	690169
10	Stem Packing	1	23678-01	686598-01	23678-01	686598-01	23678-01	686598-02
11	Check Valve	1	19776-01	678627-01-99	---	---	19776-01	678627-01-99
12	Grease Fitting	1	5929-25	5929-55	5929-25	5929-55	5929-25	5929-55
13	Bonnet Gasket	1	19141-10	19141-10	21794-20	21794-03	19141-11	19141-11
14	Gate and Seat Assembly	1	21353-03-02	21353-03-07	21353-04-01	21353-04-11	21353-04-03	21353-04-12
15	Stem	1	19285-03	29381-49	19778-04	29381-04-99	23253-01	38228-01-99
16	Gate	1	19800-02	23247-02	19801-03	23248-01	19794-02	23249-01
17	Retainer Plate	2	611404-03	611404-03	611404-05	611404-17	611404-17	611404-17
18	Seat Ring	2	44783-06	44783-06	610482-03	610482-03	610978-02	610978-02
19	Seal Ring	2	610500-50	610500-50	610500-47	610500-47	610500-47	610500-47
20	Pin	2	---	---	21813-06	21813-06	---	---
21	Seal Ring	2	610500-71	610500-71	610500-67	610500-67	610500-67	610500-67
22	Body Bushing	2	630469-06	630469-06	694815-01	694815-01	694404-01	694404-01
23	Guide	2	694482-01	694482-01	694816-01	694816-01	694406-01	694406-01

CAMERON are registered trademarks.
